13A recessed wall socket: check the back box before replacement

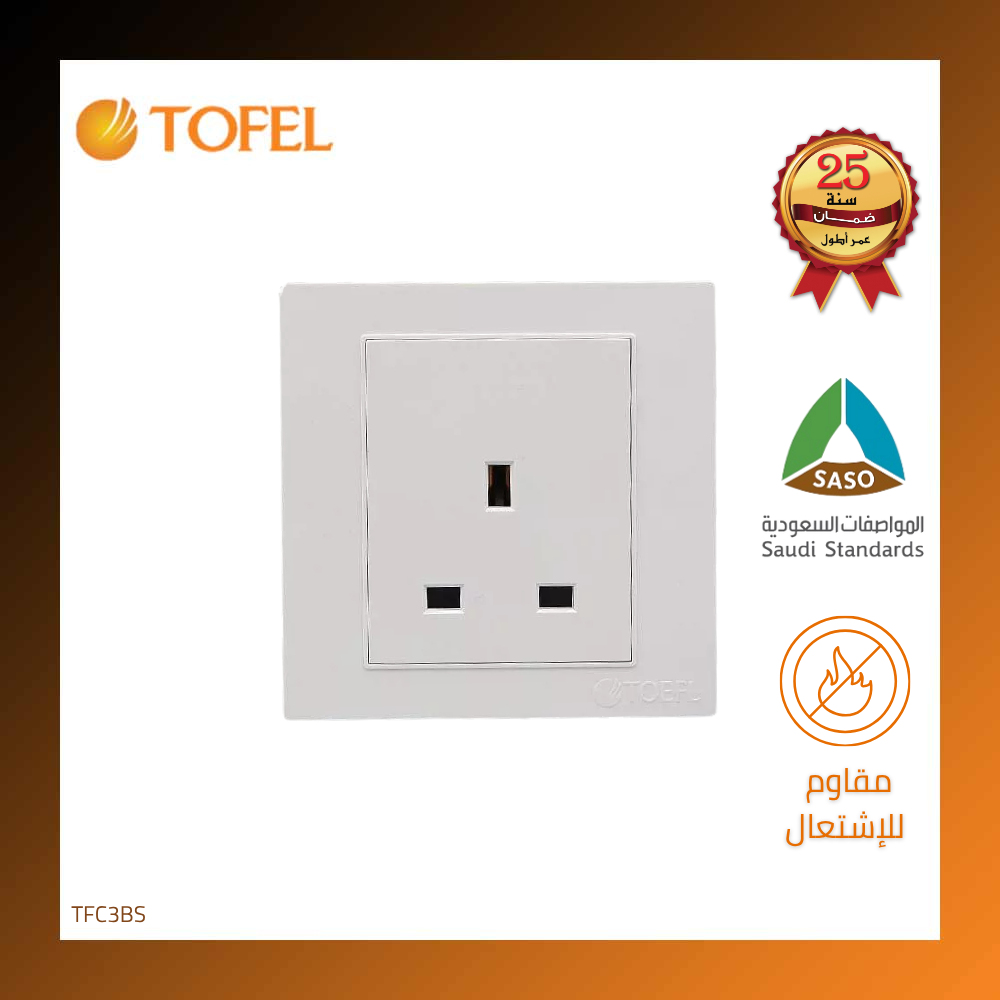

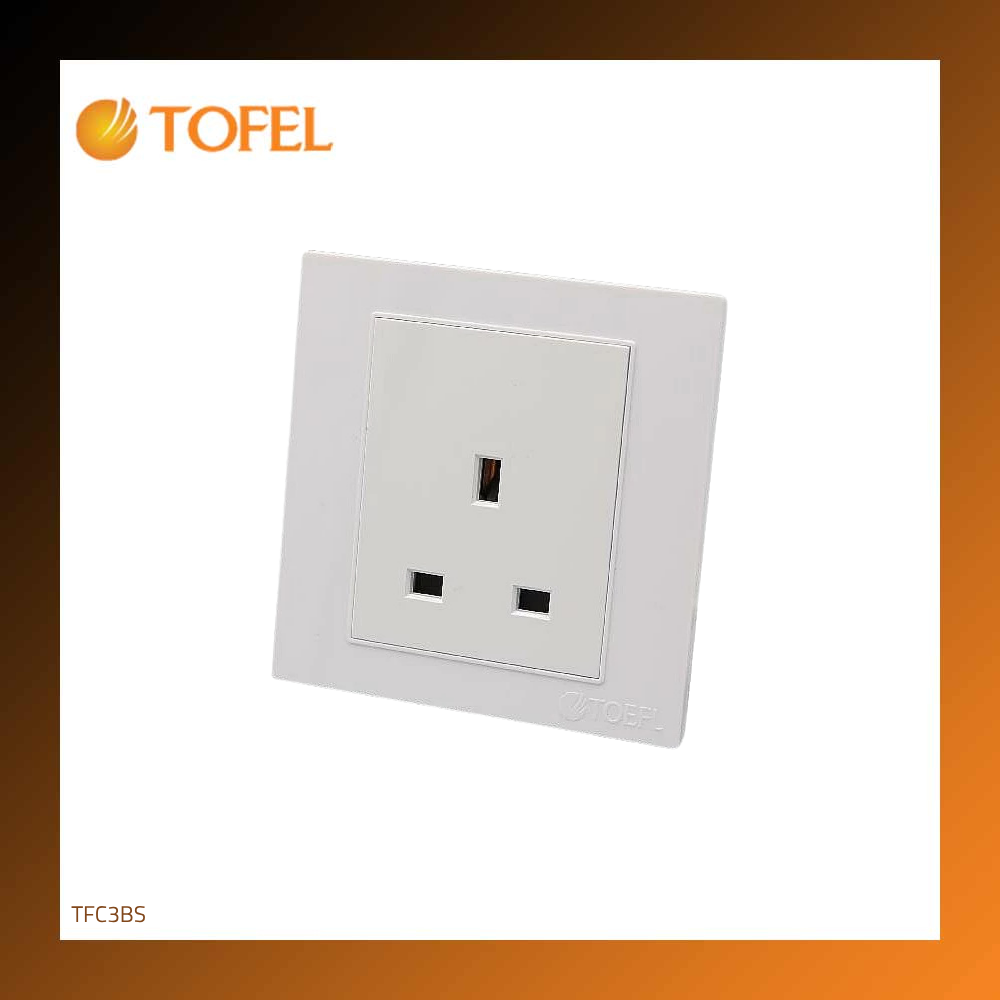

This plain white wall socket has a 7 × 7 cm face, one 3-pin outlet and a 13A rating. It is designed for recessed wall installation and has no integrated on/off switch. The face size does not establish the back-box dimensions, so check the existing box, fixing points and installation depth before ordering.
7 × 7 cm is the face size
Do not use the face dimensions as the wall-opening or back-box size. For replacements, compare the actual fixing arrangement and depth with the new unit. For new work, agree the recess requirements with the electrician before preparing the wall.
A basic 3-pin outlet with no integrated switch
This model provides one 3-pin outlet only. If the point needs an additional switching function, compare the Plain White switched socket option and review its specifications separately.
13A current rating
Match the 13A socket rating to the connected device and electrical circuit. Follow the product marking and installation instructions, and use a qualified electrician for wiring or replacement.
specifications
Specification | Value |
|---|
SKU | TFC3BS/WH |
Outlet | Single 3-pin socket |
Current rating | 13A |
Face dimensions | 7 × 7 cm |
Installation | Recessed in wall |
Finish | Plain White |
Integrated switch | None |
Warranty | 25 years, subject to terms |
Before ordering
- Confirm back-box fit, fixing points and installation depth.
- Check the voltage printed on the product before wiring; previous records do not provide one consistent value.
- Confirm that a socket without an integrated switch is the required function.
Buyer questions
Does 3-pin mean three outlets?
No. It is one socket with three pin openings.
Is 7 × 7 cm the wall opening size?
No. It is the face size; check the back box separately.
What is the warranty?
The warranty is 25 years subject to terms. See the warranty policy.
Match the installation and socket function first, then coordinate the finish with the rest of the range.
