Smart Single Switch, Graphite, Remote Control via WiFi, Easy-to-Use Touch Operation, Mobile Control, Compatible with Alexa and Google Home

Show Cataloge

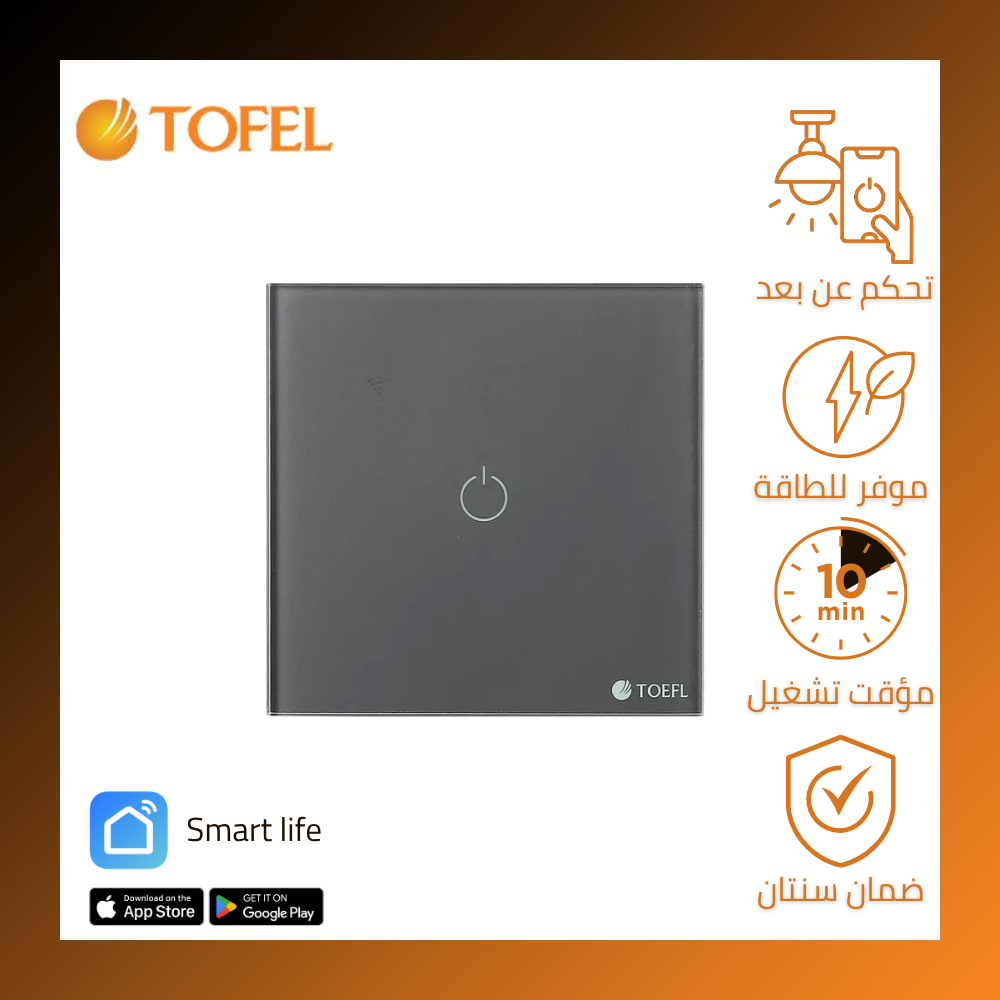

Smart Single Light Switch – Graphite

Overview

The smart light switch is the ideal solution for controlling your home or office lighting intelligently and effortlessly. It allows remote control via smartphone, voice commands (compatible with Smart Life, Alexa, and Google Assistant), or direct touch. You can schedule lighting, measure electricity consumption, and manage lights whether you are at home or away.

Key Features

• Remote smart control: turn lights on/off from anywhere via mobile app
• Compatible with Amazon Alexa, Google Home, and Smart Life for voice control
• Easy installation: no need for wiring modifications (touch-based system)
• Low wireless power consumption (≤0.2W)
• Supports loads up to 1000W per switch (suitable for lamps, LEDs, fans, etc.)
• Operates under various conditions: withstands -20°C to 70°C and up to 95% humidity

Uses

• Remote control from anywhere in the world
• Automatic scheduling for on/off operation
• Integration with smart home systems
• Energy saving through precise consumption control

Safety Warnings

• Must be installed by a qualified electrician
• Turn off power completely before installation
• Do not exceed maximum load (1000W per switch)
• Avoid installation in damp or wet areas
• Do not press hard on the touch panel

Installation Guide

1. Turn off power from the main breaker
2. Remove the old switch carefully
3. Connect wires:
   • Brown (Phase/Live) → L input
   • Blue (Neutral) → N input
   • Black (Load) → L1/L2 input
4. Fix the switch into the wall box
5. Restore power and test operation

Smart Life (Tuya) App Setup

• Download from Google Play or App Store
• Create an account or log in
• Add new device: choose “Wi-Fi Smart Switch”
• Enter 2.4GHz Wi-Fi details
• Press switch button for 5 seconds until LED blinks
• Name the device (e.g., “Living Room Light”)

Troubleshooting

• If connection fails:
  • Ensure 2.4GHz Wi-Fi network
  • Place switch closer to router
  • Restart the app
• Factory reset: press power button for 10 seconds until LED blinks 3 times

Specifications
