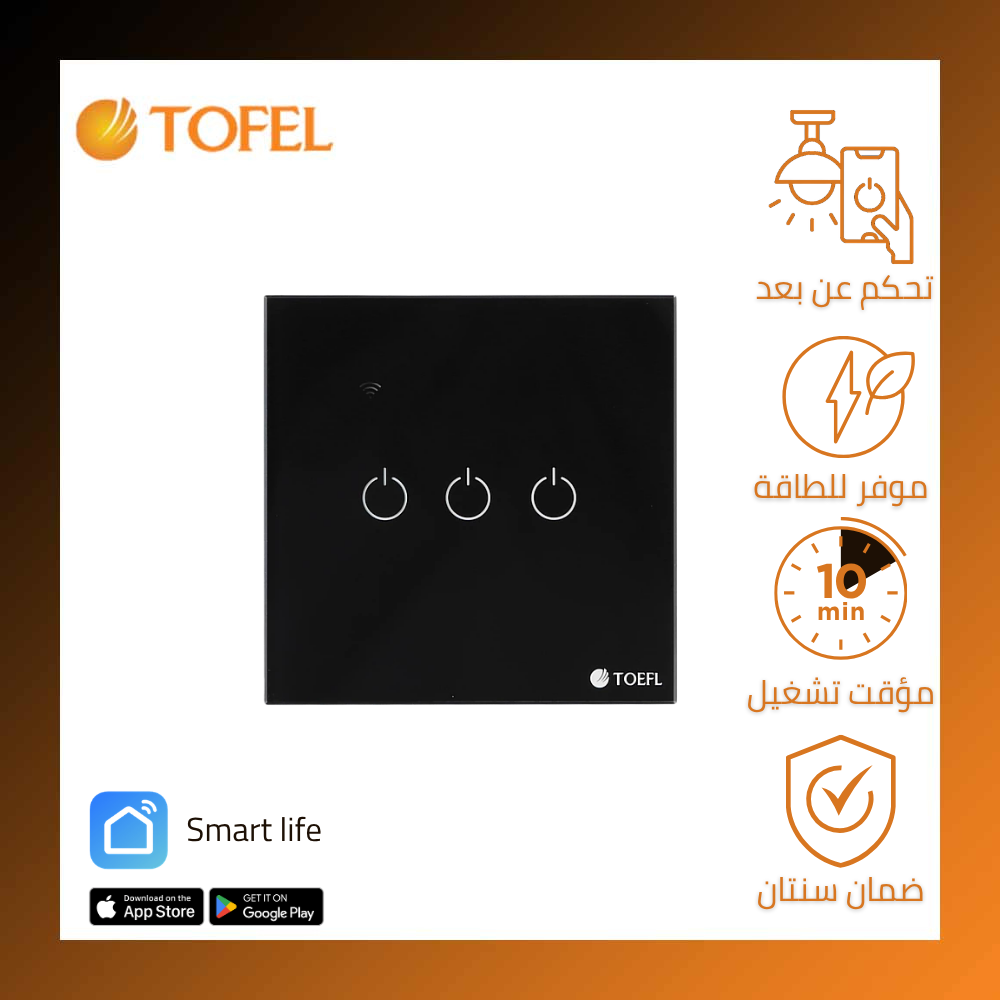

Smart Light Switch – Touch Control with WiFi and Voice Integration
The smart light switch is the ideal solution for managing your home or office lighting intelligently and effortlessly. It allows remote control via smartphone or voice assistants, tracks energy consumption, and enables scheduling based on your needs—whether you're at home or away. With a sleek touch-enabled design, it offers control through mobile apps, voice commands (Smart Life, Alexa, Google Assistant), or direct touch.
Main Features
- Remote smart control – Turn lights on/off from anywhere using the mobile app
- Compatible with Amazon Alexa, Google Home, and Smart Life – Voice control integration
- Easy installation – No wiring modifications required (touch-based system)
- Energy-saving – Low standby power consumption (≤0.2W)
- Versatile – Supports loads up to 1000W per switch (ideal for bulbs, LEDs, fans, etc.)
- Durable – Operates in temperatures from -20°C to 70°C and humidity up to 95%
Functions and Use Cases
- Remote access from anywhere in the world
- Scheduled on/off automation
- Smart home integration (Alexa/Google Home)
- Energy savings through precise control
Important Safety Warnings
- Must be installed by a qualified electrician – improper handling may cause shock or fire
- Disconnect power completely before installation
- Do not exceed the maximum load (1000W per switch)
- Avoid installation in wet or humid areas
- Do not press the touch panel forcefully
Step-by-Step Installation Guide
Required Tools:
- Insulated screwdriver
- Insulated pliers
- Voltage tester
Installation Steps:
- Turn off power from the main breaker
- Carefully remove the old switch
- Make the connections:
- Brown wire (Live) → L terminal
- Blue wire (Neutral) → N terminal
- Black wire (Load) → L1/L2 terminal
- Secure the switch into the wall box
- Restore power and test the switch
Smart Life (Tuya) App Setup
- Download the app from Google Play or App Store
- Create an account or log in
- Tap (+) to add a new device
- Select “Switch” then “Wi-Fi Smart Switch”
- Follow the instructions:
- Enter your 2.4GHz WiFi credentials
- Press the switch button for 5 seconds until the LED flashes
- Name the device (e.g., “Living Room Light”)
Troubleshooting
If pairing fails:
- Confirm you're using a 2.4GHz network
- Move the switch closer to the router
- Restart the app
Factory Reset:
Press and hold the power button for 10 seconds until the LED flashes three times
Specifications
| Specification |
Description |
| Model |
TF31/SMART/BK |
| Switch Type |
Smart Triple Switch |
| Product Dimensions (cm) |
7 × 7 |
| Installation Type |
Flush‑mounted in wall |
| Cover Color |
Black |
| Warranty |
2 years |
| Compliance with Saudi & Gulf Standards |
Yes |
