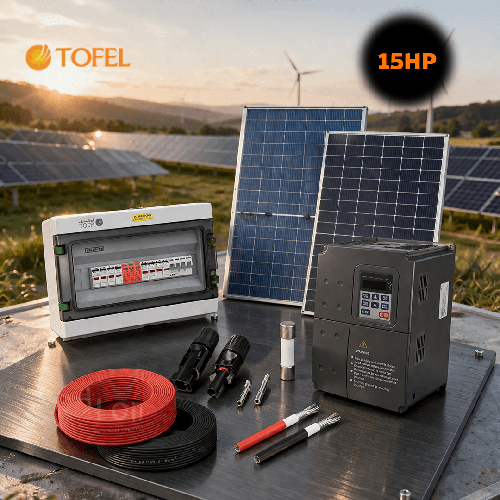

The TF-1023/15kW industrial frequency converter is a high-performance unit designed for heavy-duty applications. It provides advanced motor control through Vector Control technology, with support for both solar and grid power systems. This makes it ideal for water pumping, production lines, and medium-load industrial systems. Built to withstand harsh conditions, it ensures stable operation with high efficiency.
Technical Specifications
| Item |
Details |
| Model |
TF-1023/15kW |
| Rated Power |
15kW |
| Rated Input Current |
40A |
| Rated Output Current |
32A |
| AC Input Voltage |
3PH (Three-phase) AC380V (±15%) – 440V (±10%) |
| Frequency |
50/60Hz |
| DC Voltage Range |
250V–900V |
| Protection Rating |
IP20 |
| Warranty |
3 years |
| Operating Temperature |
-10°C to +50°C |
| Dimensions |
320 × 220 × 180 mm |
Key Features
- Vector Control for precise motor speed regulation
- Built-in brake unit
- Supports solar + grid power in the same system
- Full protection against electrical surges
- Control over speed, torque, and position
- RS485 support for smart control
- Suitable for continuous operation under heavy loads
Applications
- Water pumping systems
- Production lines
- Industrial machinery
- Workshop tools and machines
- Agricultural irrigation systems
- Solar-powered pumping stations
Functionality
The converter receives energy from an AC source or solar panels via PV input and transforms it into suitable power for motor operation. By adjusting frequency and voltage, it provides either constant or variable speed depending on requirements.
Installation & Warranty
- Input Voltage: 3PH
- Mounting Type: Wall-mounted
- Cover Color: Black
- Warranty: 3 years
- Outdoor Resistance: IP20
